Ceramic quartz diffusers
Sintered tubes and discs in silica sand and epoxy binder, for fine and durable oxygenation in continuous-duty plants.
Microbubble tube diffusers in quartz
Sintered tubes made of selected silica sand and epoxy binder, designed for flexible mounting in groups of 1 to 5 units on manifolds with a standard 400 mm centre distance, single or double comb layout.
- Standard sizes
- Ø70 x 40 x L500 mm — Ø70 x 40 x L750 mm
- Porosity
- fine 60 micron, medium 100 micron, coarse 250 micron (on request)
- Design flow rate
- Nmc/h 12 per m/diffuser, fine bubble
- Mounting
- groups of 1-5 units, manifolds with more positions/different centre distances on request; floor brackets for support, anchoring and level adjustment; can be mounted on a rigid riser or lifting arms to bring the group to working height
- Duty
- continuous
Microbubble disc diffusers in quartz
Sintered disc made of selected silica sand and epoxy binder, with built-in check valve, suitable for continuous duty.
- Size
- Ø250 x h42 mm
- Diffusion surface
- 0.087 m²
- Porosity and flow rate
- fine 60 micron → Nmc/h 4-10; medium 100 micron → Nmc/h 4-12; coarse 250 micron (on request) → Nmc/h 6-18
- Duty
- continuous
Elastomer diffusers
Discs and tubular units in high-quality elastomer with built-in check valve: maximum elasticity for continuous or intermittent duty.
Microbubble disc diffusers Ø9" in elastomer
Made of high-quality, highly elastic elastomer, with built-in check valve: suitable for both continuous and intermittent duty.
- Size
- Ø260 mm
- Surface
- 0.037 m²
- Micro-perforations
- 4,050
- Design flow rate
- Nmc/h 4
- Oxygen transfer
- the lower the flow rate, the higher the percentage of oxygen transferred
Microbubble disc diffusers Ø15" in elastomer
Same construction quality as the Ø9" model, in a larger format for higher air flow rates; built-in check valve, continuous or intermittent duty.
- Size
- Ø386 mm
- Surface
- 0.082 m²
- Micro-perforations
- 9,690
- Design flow rate
- Nmc/h 8
- Oxygen transfer
- the lower the flow rate, the higher the percentage of oxygen transferred
Microbubble tube diffusers in elastomer
Tubular units in high-quality, highly elastic elastomer, mountable in groups of 1 to 5 with a standard 400 mm centre distance, single or double comb layout; counterweights anchored under the manifold allow the group to be introduced and extracted while the tank remains full.
- Standard sizes
- Ø69 x L500 mm (7,340 micro-perforations) — Ø69 x L750 mm (11,230 micro-perforations)
- Porosity
- proportional to the volume of air injected
- Design flow rate
- Nmc/h 8 m/diffuser fine bubble, Nmc/h 10 medium bubble, Nmc/h 12 coarse bubble
- Mounting
- manifolds with more positions/different centre distances on request; floor brackets; rigid riser or lifting arms to working height
- Duty
- continuous/intermittent
Air distribution networks
Pre-assembled polypropylene or AISI networks, polyfusion welded, connecting diffusers to the air supply with maximum tightness.

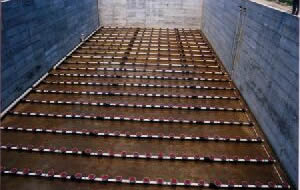

Pre-assembled air distribution networks
Made of polypropylene, a material that allows polyfusion welding with 92-95% of the resistance of drawn pipe; also available in AISI on request. Main pipes are sized for an air velocity not exceeding 15 m/sec, with a free PN10 flange for connection to the riser pipe supplied by the customer. Diffuser feed pipes Ø90 branch off the main pipe, anchored to the floor with adjustable brackets and joined with quick PP couplings that absorb longitudinal expansion. The pipe ends are connected with Ø32 PP pipe and quick couplings to form a condensate collection loop, with a condensate drain valve positioned above the hydraulic head. The distance between diffusers and between rows is set case by case to optimise mixing and oxygenation of the wastewater.
- Material
- polypropylene (polyfusion welded) or AISI on request
- Air velocity
- ≤ 15 m/sec
- Connection
- free PN10 flange
Full-tank extraction systems
Components for maintenance and extraction of diffuser groups without having to empty the tank.

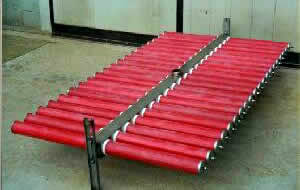

Full-tank group extraction systems
Components designed to allow maintenance and extraction of diffuser groups without having to empty the tank:

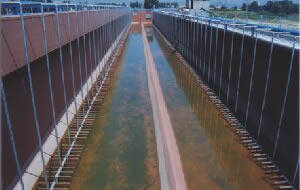

- Rigid riser
- with ball valve and M/F conical-seat fitting

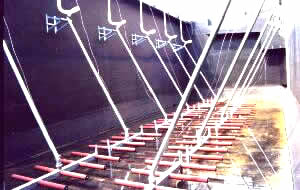

- Lifting arm
- to bring the group to the surface at working height

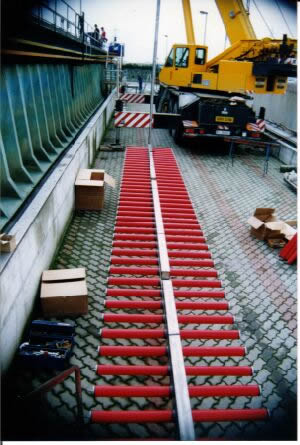

- Multi-position manifolds
- for slab layouts
Other applications
Porous solutions for specific uses that call for the same fine air or gas diffusion characteristics.
Other applications
Besides our standard diffusers for municipal and industrial treatment, we manufacture porous solutions for specific uses that call for the same fine air or gas diffusion characteristics:
- Porous pipes
- for primary water filtration
- Aerating filters
- for fish farming
- Aerating filters
- for tanks and aqueducts
- Porous pipe
- for biogas filtration
